This intelligent non destructive testing equipment uses magnetic flux leakage technology for precise nde testing and welding flaw inspection. It detects surface and subsurface defects such as folds, scratches, and inclusions with superior accuracy and efficiency.

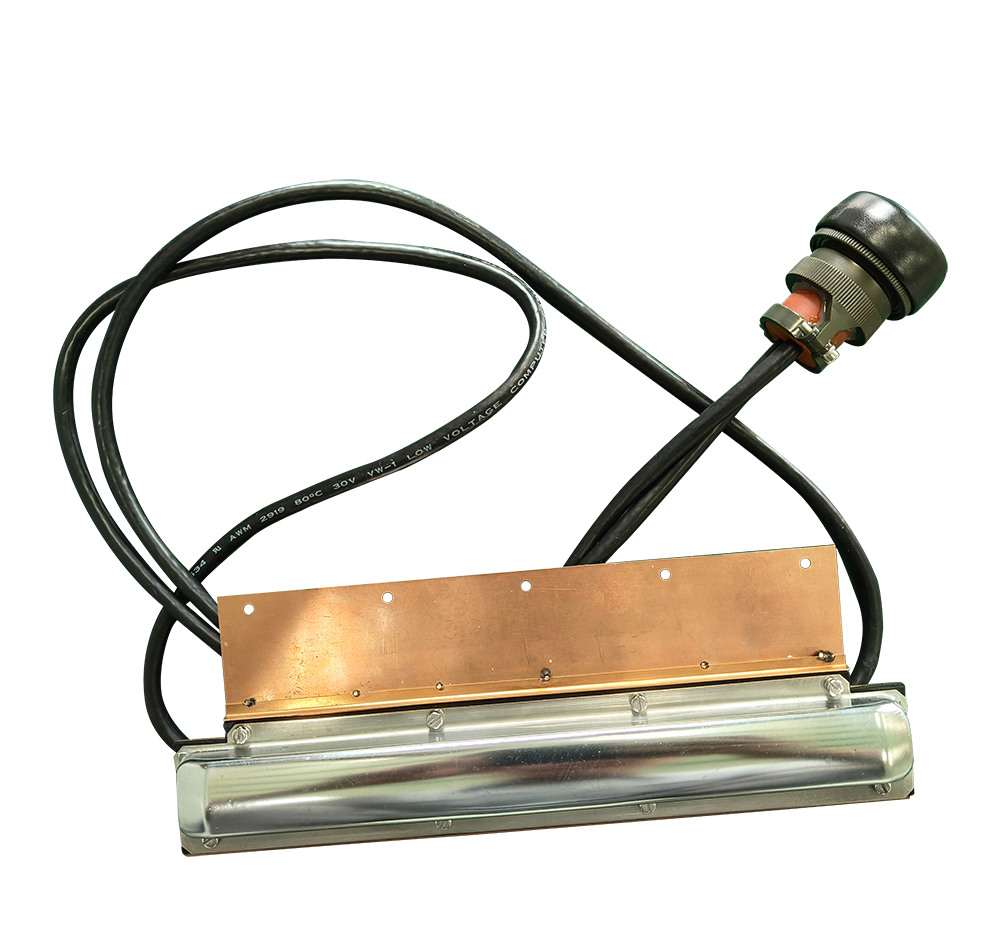

Tianjin Ruicheng Testing Production Name: Magnetic Leakage Transverse Shoe（test head>）Sonoscope Used on Tuboscope Model: From MHCHØ114.3mm to MHCH Ø508mm
Function:Detect the transverse defects of the steel pipe, including: external folding, external scarring, transverse scratches, inclusions. Support product customization.
1. Advanced Magnetic Flux Leakage Detection System The intelligent magnetic flux leakage flaw detector is purpose-built for nondestructive inspection of welded and seamless steel pipes. By generating a strong, stable magnetic field around the pipe’s surface, it detects leakage flux caused by discontinuities such as transverse cracks, external folding, or inclusions. High-resolution sensors capture these magnetic distortions and convert them into digital data for in-depth analysis. The system’s wide range of models—from MHCH Ø114.3 mm to MHCH Ø508 mm—makes it suitable for different pipe sizes and materials. Its advanced magnetic circuit design ensures sensitivity and repeatability during continuous nde test operations, guaranteeing consistent inspection quality.
2. Intelligent Control and Real-Time Signal Analysis This non destructive testing equipment integrates intelligent control modules and DSP-based data processing technology. The analyzer interprets real-time signals, filters noise, and generates visual defect maps for operators. Each test is digitally recorded with traceable parameters such as defect size, position, and magnetic amplitude. The interface allows automatic calibration and environmental compensation, ensuring accurate readings even in high-speed production environments. Through software connectivity, it supports network data sharing and remote nde testing diagnostics, enabling users to monitor system performance from multiple inspection sites simultaneously.
3. Rugged Mechanical Design and Adaptability Manufactured with a reinforced aluminum alloy chassis, the flaw detector resists vibration, corrosion, and temperature variations. Its modular probe design provides flexibility to adapt to different industrial conditions—whether in-line welding inspection or field pipe testing. Customization options allow clients to define sensor configurations, coil layouts, and magnetization intensity according to project requirements. The system’s hardware stability supports long-term nondestructive inspection without frequent recalibration, extending operational lifespan while maintaining consistent accuracy. Compact and ergonomic, the detector fits seamlessly into automated production lines or mobile testing stations.
4. Broad Industrial Applications and System Integration This equipment is widely adopted in oil, gas, metallurgy, and heavy engineering sectors. It provides reliable inspection for welded joints, pipelines, and pressure vessels. The system’s compatibility with existing MFL consoles such as AMALOG 16CH Mill-Comp ensures efficient integration into multi-channel automation setups. As a leading non destructive testing equipment provider, Tianjin Ruicheng guarantees that each system meets international standards for quality and precision. The detector not only identifies defects early but also minimizes risk, ensuring operational safety and compliance. Its adaptability makes it an indispensable asset for modern nde testing and quality control systems.
Product Advantages
1. High Sensitivity and Analytical Precision Ruicheng’s intelligent flaw detector features advanced magnetic field stabilization and high-precision sensing technology. It captures even the slightest defect signals that conventional systems may overlook. During nde testing, the detector maintains exceptional sensitivity and signal-to-noise ratio, ensuring accurate differentiation between material noise and true defect indicators. The system’s analytical algorithms automatically classify defect types and dimensions, providing detailed quantitative reports. Its precision and reliability make it the preferred choice for manufacturers requiring rigorous nondestructive inspection and welding analysis under industrial-grade conditions.
2. Automation, Efficiency, and Data Traceability Designed for intelligent manufacturing environments, the detector supports automated operation, data logging, and centralized monitoring. Operators can conduct high-speed, multi-point scanning with consistent accuracy, significantly improving production efficiency. Each inspection generates a complete digital record for traceability and quality management. The intuitive interface enables visualization of flaw patterns and statistical defect trends. This non destructive testing equipment seamlessly connects with MES or ERP systems, creating a closed-loop data ecosystem that enhances decision-making and predictive maintenance. Such automation ensures stable and repeatable nde test results, reducing human dependency and inspection time.
3.Reliability, Custom Engineering, and Technical Service Engineered for heavy-duty use, the detector guarantees stable operation in challenging industrial environments. The combination of corrosion-resistant materials, modular electronics, and precision sensors ensures durability and low maintenance. Ruicheng offers tailored engineering support, from equipment configuration to software customization, to suit different client requirements. The global service team provides remote diagnostics, calibration training, and technical consulting to ensure optimal system performance. Each unit undergoes strict factory testing to comply with nondestructive inspection standards. The result is a reliable, user-oriented non destructive testing equipment solution that sustains accuracy, efficiency, and cost-effectiveness throughout its service life.
Function Overview:
Name: Transverse magnetic flux leakage probe assembly
Model: From DHCHØ114.3 to DHCH Ø457mm Function: Detect the transverse defects of the steel pipe, including: external folding, external scarring, transverse scratches, inclusions.Support product customization.
Company Profile: Product Display: About Us: Certifications: FAQ:
Q1：Are you a trader or a factory?
A2：We sale our own productions, and we have a factory to ensure the quality of the products and the shortest protuction cycle.
Q2：What is your strengths?
A2: Strenths of us:
Good price.
High sensetivity.
Short production cycle.
Q3: Do you support customization ？
A3：We have a long experience in the industry, we have reliable technology, so the product needs of steel pipe non-destructive testing, please contact us, we will try our best to give you a satisfactory solution.
