Ultrasonic Single Crystal Angle Probe –20×20 70° for Steel Pipe Flaw Detection

Name: Ultrasonic Single Crystal Angle Probe –20×20 70° for Steel Pipe Flaw Detection
Brand: Tianjin Ruicheng

Richeng is a leading Chinese provider of high‑end MFL and ultrasonic inspection solutions. We offer complete systems—from probes and software to automated online flaw detectors and electrical controls—for both MFL and UT testing applications.

GET A QUOTE

Description

Ultrasonic Single Crystal Angle Probe – 20×22 70° for Steel Pipe Flaw Detection
Our ultrasonic single crystal angle probe is designed for flaw detection in steel pipes, rods, and other ferromagnetic materials. Featuring a 20×20 mm piezoelectric crystal with a 70° refracted angle, this probe delivers high sensitivity and excellent signal-to-noise ratio for detecting internal defects such as cracks, porosity, and inclusions. Compatible with major UT instruments including Q9, and C5.

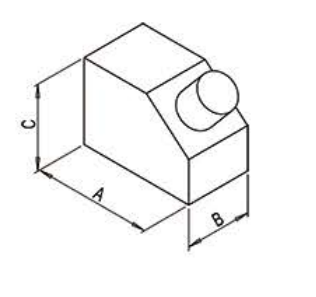

	Frequency(MHz)	Material	chip size (mm)	Refracted shear wave angle in steel	Housing Size
APS	2.5/5	P*C	9x9* 8x10 8x12 10x10	K1/K1.5/K2K2.5/K3X38/X45/X60/X70X90	32/18/23
APM	1/2.5/5		13x13 14x14 10x16		40/21/29
APL	0.5/1/2.5		18x18 16x16 20x20		53/29/42

Excellent SNR – Optimized acoustic design minimizes background noise for clear signal interpretation

Durable Construction – Wear-resistant housing withstands harsh industrial environments

Wide Compatibility – Direct replacement for major brands including Q9 and C5.

Customizable – Frequency, angle, and connector type available upon request

Pre-calibrated – Each probe comes with individual calibration certificate and performance test report

Typical Applications:

Seamless and welded steel pipe inspection
Bar and rod flaw detection
Forged component testing
Weld seam inspection
Railway track and wheel inspection
Aerospace component NDT
Compatible with:
Compatible with leading imported systems – our MFL probes work seamlessly with Tuboscope (US) and Foerster (German) equipment.

Quality Assurance:

Manufactured in accordance with ASTM E1065 / EN 12668-2 standards
100% performance tested before shipment
Each probe includes individual test certificate

12-month warranty against manufacturing defects
